Printed Circuit Board Antennas - Log Periodic

use when ordering multiple items

https://WA5VJB.Square.Site/


International orders incur additional shipping cost.
Connectors at additional cost.
400 - 1000 MHz Log Periodic

400 - 1000 MHz Log Periodic
(Data Sheet)

$38.00 - $53.00

Buy now

400 - 1000 MHz:
This log periodic printed circuit board antenna gives great performance from 400 - 1000 MHz. This range includes all broadcast UHF High Definition television (HDTV) channels. This can also be easily applied to other hobbyist applications in this range. Excellent for EMI / RFI applications. Includes typical antenna factors.

Very popular with wireless microphone applications. The antenna can be painted black without affecting performance.

Available with SMA-Female bound-mounted connector at additional cost.

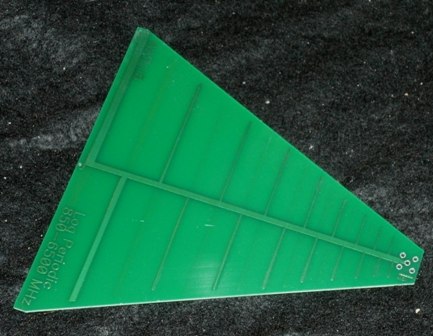

850 - 6500 MHz Log Periodic

850 - 6500 MHz Log Periodic (Data Sheet)

$24.00 - $39.00

Buy now

850 - 6500 MHz:
This log periodic printed circuit board antenna gives great performance from 850 - 6500 MHz. This range includes old analog cellular telephones, and wireless networking at 2.4GHz. This can also be easily applied to other hobbyist applications in this range. Excellent for EMI / RFI applications. Includes typical antenna factors.

Available with SMA-Female bound-mounted connector at additional cost.

2 - 11 GHz Log Periodic

2 - 11 GHz Log Periodic (Data Sheet)

$10.00 - $25.00

Buy now

2100 - 11000 MHz: (2.1 - 11 GHz)
This log periodic printed circuit board antenna gives great performance from 2100 - 11000 MHz. This range includes wireless networking at 2.4GHz (802.11b/g) and 5.8GHz (802.11a). This wide range works well for frequency sweeps and other broadband applications. This can also be easily applied to other hobbyist applications in this range. Excellent for EMI / RFI applications. Includes typical antenna factors.

Available with SMA-Male pigtail-mounted connector at additional cost.
